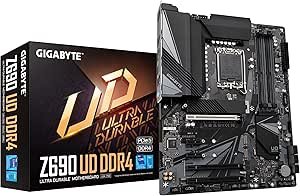

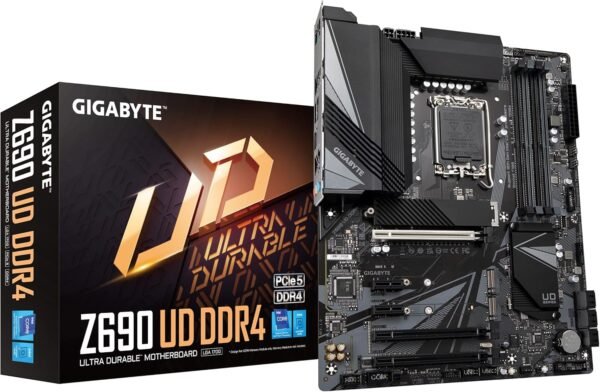

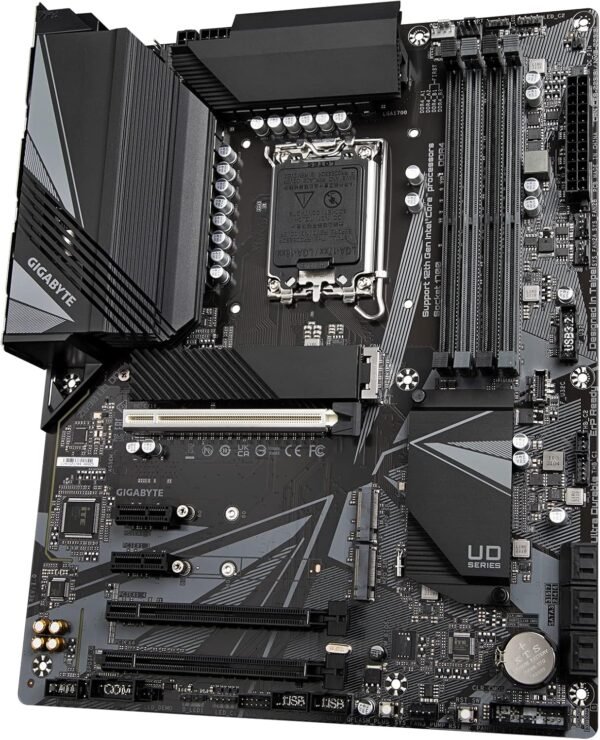

Introducing the GIGABYTE Z690 UD DDR4

Testing the GIGABYTE Z690 UD DDR4 motherboard has been quite an experience. This ATX board, built for Intel’s 12th Gen Core processors, is packed with features that make it a standout choice for gamers, PC builders, and tech enthusiasts. From its PCIe 5.0 support to triple M.2 slots, it promises performance and flexibility. But, like any product, it has its strengths and a few areas where it could improve. Let me walk you through my experience to help you understand if this is the right motherboard for your build.

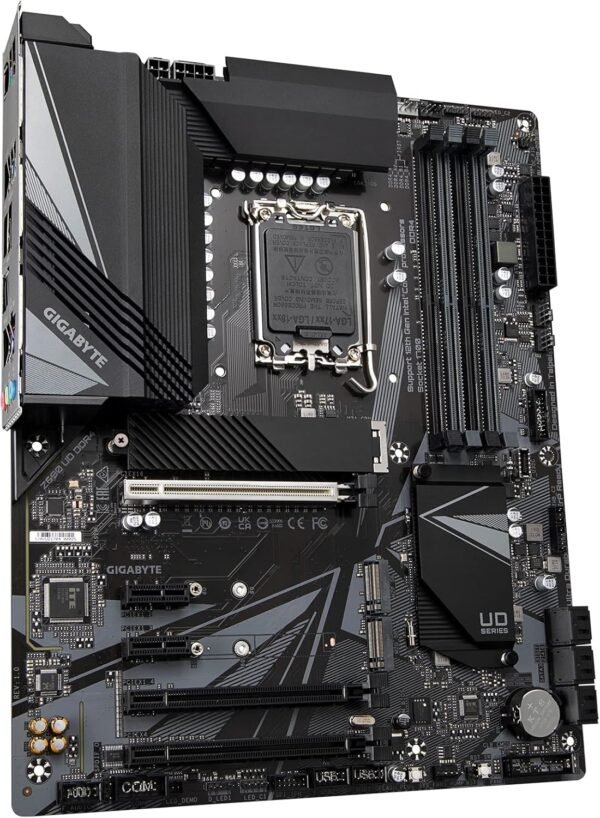

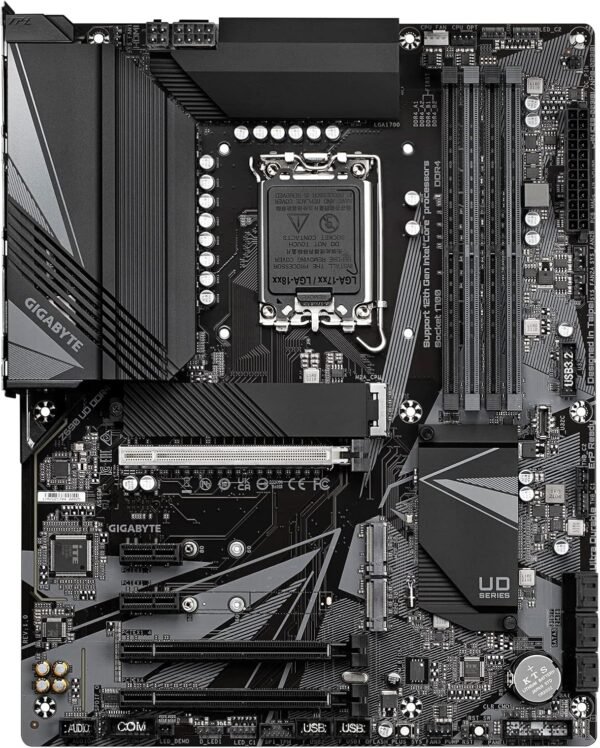

Design and Build Quality

The design of the GIGABYTE Z690 UD DDR4 is sleek and functional. It feels solid right out of the box, with its 16+1+2 digital VRM design ensuring durability and stability under heavy workloads. The VRM heatsinks caught my eye immediately; they’re massive and designed for efficient heat dissipation, which is crucial for those planning to overclock their systems. The board’s RGB FUSION 2.0 support lets you add a personal touch with addressable LEDs and RGB strips, though I found setting it up a bit finicky. However, the overall design feels well-thought-out, and the layout simplifies cable management.

Performance and Features

This motherboard doesn’t shy away from delivering top-notch performance. With DDR4 compatibility and support for memory speeds up to 5333 MHz, I noticed a significant boost in multitasking and gaming sessions. The PCIe 5.0 slot is a future-proof addition, offering faster speeds for upcoming GPUs, while the triple PCIe 4.0 x4 M.2 slots allow for blazing-fast storage solutions. I installed an NVMe SSD, and the performance was seamless, with near-instantaneous boot and load times. The 2.5GbE LAN is another highlight, providing reliable and fast networking, especially during online gaming or large file downloads.

That said, the lack of built-in Wi-Fi might be a dealbreaker for some. I had to use an external adapter, which added to the overall cost and complexity of the setup. While the USB 3.2 Gen 2×2 Type-C port is a welcome addition, I felt there could have been an extra port or two for greater connectivity options.

Positives

The key benefits of this motherboard really stand out for anyone looking for performance and future-proofing:

• Support for Intel’s 12th Gen processors ensures compatibility with the latest CPUs.
• The 16+1+2 VRM design provides stable power delivery, even under heavy loads.
• Triple M.2 slots offer excellent storage expansion options.
• Future-ready PCIe 5.0 support for next-gen hardware.
• RGB FUSION 2.0 adds customizable aesthetics to your build.

Disadvantages

However, I did notice a few areas for improvement, or downsides, during my testing:

• No integrated Wi-Fi, which might be a hassle for wireless setups.
• The BIOS interface feels outdated compared to competitors, making navigation less intuitive.
• Limited USB ports despite having high-speed options.
• Only compatible with Intel LGA1700 cooling brackets, which might require additional purchases for certain setups.

Thermal Performance and Cooling Options

A standout feature of this motherboard is its comprehensive thermal design. During extended gaming sessions, the VRM heatsinks performed admirably, keeping temperatures in check. The inclusion of Smart Fan 6 technology is a lifesaver, as it dynamically adjusts fan speeds based on system temperature. I particularly appreciated the flexibility to customize fan curves, which helped maintain a balance between cooling and noise. However, make sure your case has good airflow to complement the board’s cooling capabilities.

Competing Products

Comparing this board to ASUS ROG Strix Z690-A and MSI MPG Z690 Edge, it’s clear that the GIGABYTE Z690 UD DDR4 offers value in terms of power delivery and storage options. While the ASUS board excels in aesthetics and Wi-Fi integration, it comes at a higher price point. The MSI alternative, on the other hand, boasts a better BIOS interface but falls slightly behind in thermal performance. The GIGABYTE motherboard’s VRM design and future-proof PCIe 5.0 slot make it a compelling choice, especially for budget-conscious builders who prioritize performance over extra features.

Value for Money

From a cost-effectiveness standpoint, I’d say this board is worth its price tag, though it caters more to performance enthusiasts than casual users. The lack of built-in Wi-Fi and a few quirks in the BIOS might give pause, but the power delivery system, storage options, and next-gen support more than make up for these limitations. For gamers and content creators seeking a reliable and high-performance motherboard without breaking the bank, this is a strong contender.

The GIGABYTE Z690 UD DDR4 is not without its flaws, but its high-quality build, extensive feature set, and robust performance make it a solid choice for most PC builds.
