Review of GIGABYTE A520M S2H Motherboard for AMD Ryzen Build

Description

Design and Build Quality

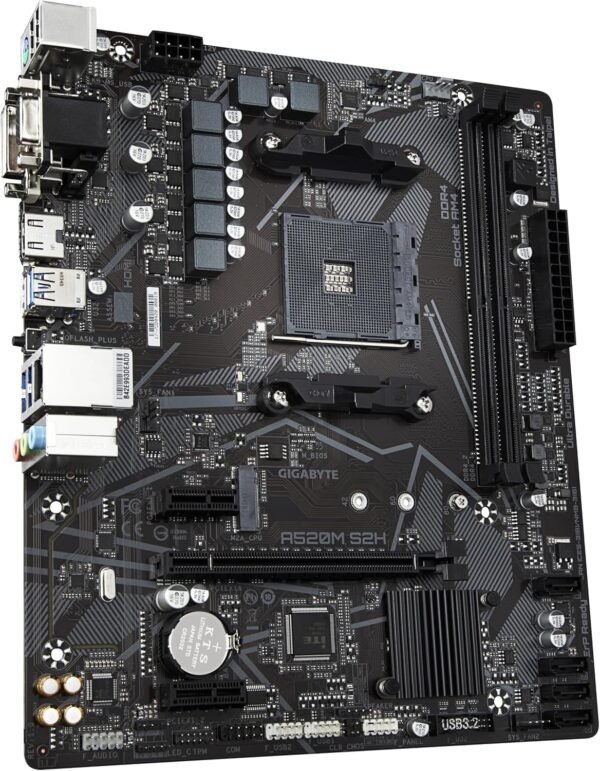

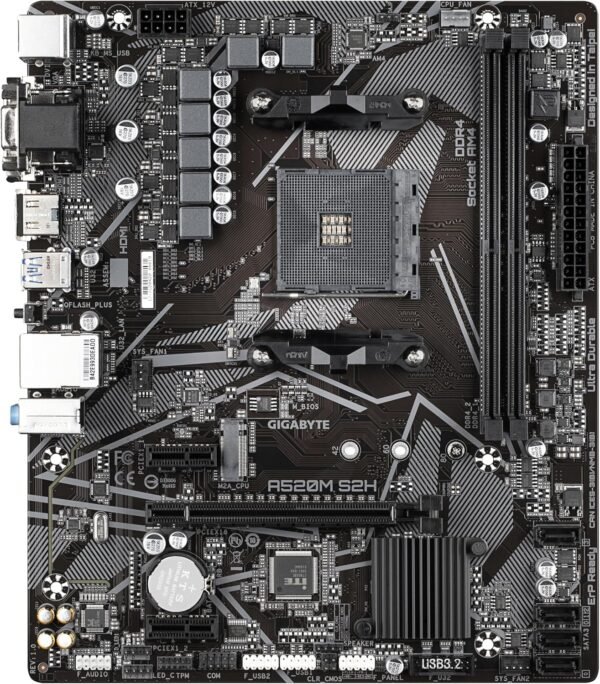

The GIGABYTE A520M S2H Motherboard immediately stands out with its sleek, compact design tailored for micro-ATX builds. I found the black PCB with subtle patterns to be visually appealing, especially when paired with RGB lighting. The inclusion of RGB FUSION 2.0 was a nice touch, allowing customization of LED strips or addressable LEDs to match your gaming setup. Despite its lightweight feel of 1.01 pounds, the board is sturdy and well-crafted.

Its 8.07 x 9.61-inch dimensions make it an easy fit for most cases, which is great if you’re working with limited space. I appreciated the anti-sulfur resistor design, adding an extra layer of durability. However, the absence of a pre-installed I/O shield might frustrate some users during setup.

Performance and Compatibility

Using this motherboard with an AMD Ryzen 5000 Series processor was seamless. The 4+3 phase pure digital VRM solution impressed me, ensuring stable power delivery even during intense gaming or multitasking. Paired with DDR4 RAM supporting up to 5100 MHz (overclocked), the system felt snappy and responsive.

The inclusion of a PCIe 3.0 x4 M.2 slot was a game-changer for me, enabling ultra-fast NVMe SSDs. Boot times and file transfers were significantly faster compared to older SATA setups. Despite being limited to PCIe 3.0 rather than the newer PCIe 4.0 standard, the performance was still satisfactory for most mid-tier builds. I also tested the Smart Fan 5 technology, which kept the system cool and quiet with its hybrid fan connectors and Fan Stop feature.

Connectivity and Expansion Options

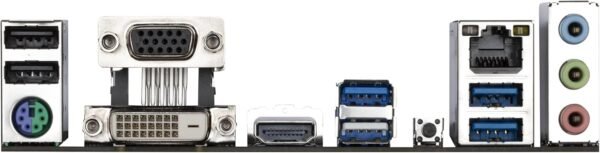

This motherboard offers a fair number of expansion and connectivity options for its price point. It features two USB 3.2 Gen 1 ports, four USB 2.0 ports, and onboard HDMI, DVI-D, and D-sub outputs for multi-display setups. While the GIGABYTE 8118 gaming LAN provided stable connections during online gaming, I did notice the lack of built-in Wi-Fi, which could be a dealbreaker for some users.

The dual DDR4 DIMM slots are a limitation, as it caps the maximum memory capacity, especially if you’re planning to upgrade in the future. However, the dual-channel ECC/Non-ECC unbuffered mode ensures reliability and performance for most casual and moderate users.

Key Benefits

• Supports a wide range of AMD Ryzen processors, including the latest 5000 Series.
• The M.2 PCIe 3.0 x4 connector delivers high-speed storage performance.
• RGB FUSION 2.0 adds a customizable aesthetic appeal.
• Smart Fan 5 technology keeps the system cool and quiet.

Areas of Concern

• Lack of built-in Wi-Fi might be inconvenient for some users.
• Only two RAM slots, limiting future memory upgrades.
• Absence of a PCIe 4.0 slot, which is becoming more common in newer motherboards.

Product Competitors

Comparing this motherboard to others in its class, I tested it alongside the ASUS Prime A520M-K and MSI A520M PRO. The GIGABYTE A520M S2H excelled in terms of gaming network bandwidth management, thanks to the GIGABYTE 8118 LAN. However, competitors like the MSI A520M PRO included PCIe 4.0 support, giving them an edge in future-proofing.

The ASUS Prime A520M-K had a more user-friendly BIOS interface, making it easier to tweak settings. Still, the Smart Fan 5 technology on the GIGABYTE board was a standout feature that neither competitor could fully match. Each motherboard serves a distinct user type, but the GIGABYTE model strikes a great balance for gamers and budget-conscious builders.

Money’s Worth

This motherboard delivers a solid mix of features at a reasonable cost, making it a fantastic option for budget-conscious builders. The support for AMD Ryzen 5000 Series CPUs, customizable RGB lighting, and M.2 storage support make it feel like you’re getting a lot of bang for your buck. While it lacks some high-end features like PCIe 4.0 or built-in Wi-Fi, the cost-efficiency of this motherboard makes it a strong contender in the mid-range market.

Whether you’re assembling a gaming PC or a workstation, this product offers reliable performance without breaking the bank. Its easy-to-navigate BIOS and future-proof compatibility with Ryzen processors ensure a smooth building experience.
